动态爬虫之QQ空间登录

准备：

1、intellij idea
2、python
3、selenium
4、phantomJs

1、分析Qzone Html页面

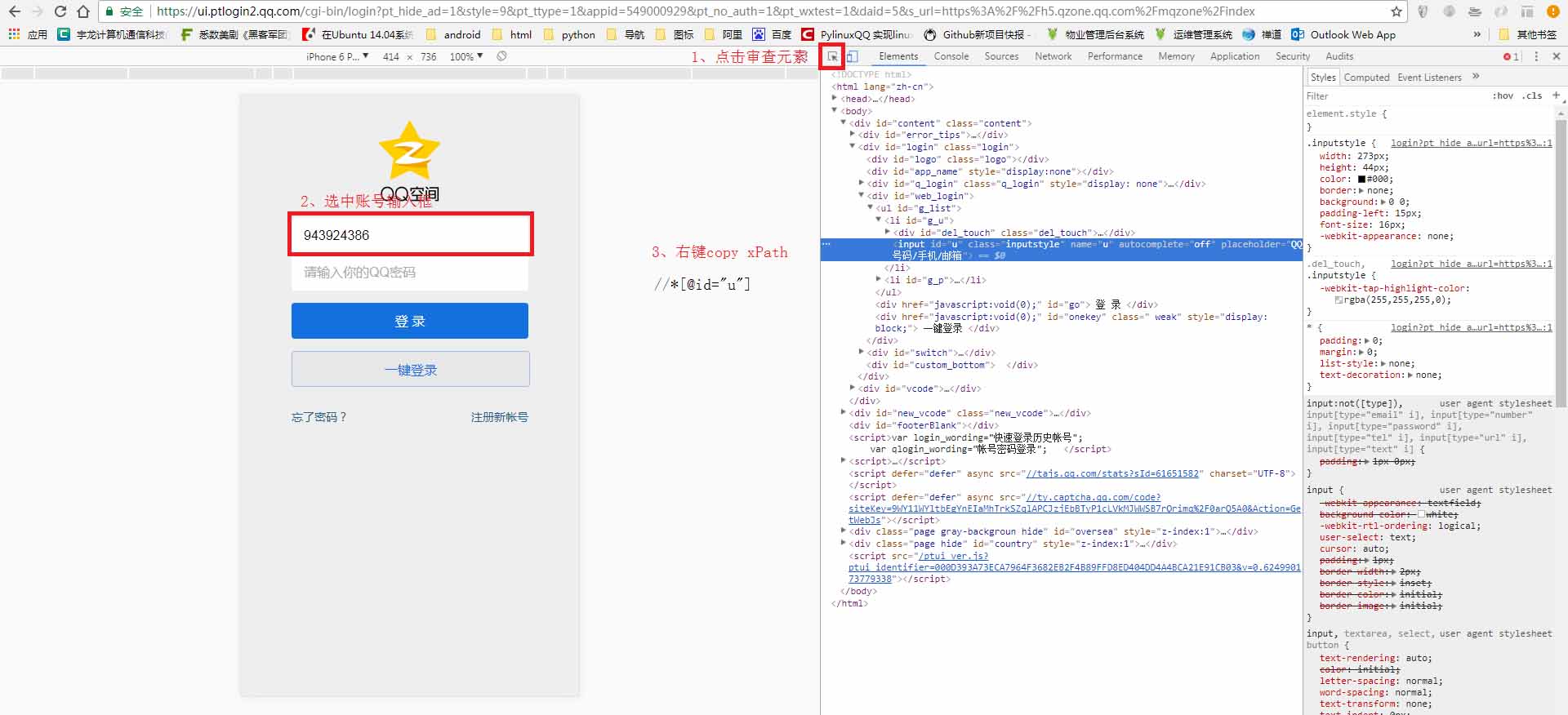

打开手机版qzone https://mobile.qzone.qq.com

按照上面流程复制账号、密码和登录按钮的的XPath粘贴到记事本中

2、超链

1、构建浏览器并且设置请求头
2、开始请求
3、模仿用户输入
4、输入验证码
5、自动登录
6、完整代码

3、编写爬虫代码

首先创建一个浏览器对象和设置请求头

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# 导入驱动包
from selenium import webdriver
from selenium.webdriver import DesiredCapabilities
class qzone_dlewares(object):
    # 浏览器请求头
    headers = {'Accept': '*/*',
               'Accept-Language': 'en-US,en;q=0.8',
               'Cache-Control': 'max-age=0',
               'User-Agent': 'Mozilla/5.0 (Linux; U; Android 2.3.6; zh-cn; GT-S5660 Build/GINGERBREAD) AppleWebKit/533.1 (KHTML, like Gecko) Version/4.0 Mobile Safari/533.1 MicroMessenger/4.5.255',
               'Connection': 'keep-alive', }

    #初始化浏览器
    def __init__(self,userName='' ,password = '', *args, **kwargs):
        self.userName = userName
        self.password = password
        desired_capabilities = DesiredCapabilities.PHANTOMJS.copy()
        for key, value in self.headers.items():
            desired_capabilities['phantomjs.page.customHeaders.{}'.format(key)] = value
        self.driver = webdriver.PhantomJS(desired_capabilities=desired_capabilities)
        # 设置屏幕大小
        self.driver.set_window_size(414, 736)


开始请求 截图

1
2
3
4
5
def startQzoneRequest(self):
    #开始请求qzone
    self.driver.get('https://mobile.qzone.qq.com')
    #截图保存到当前项目下
    self.driver.save_screenshot('screenshot.png')

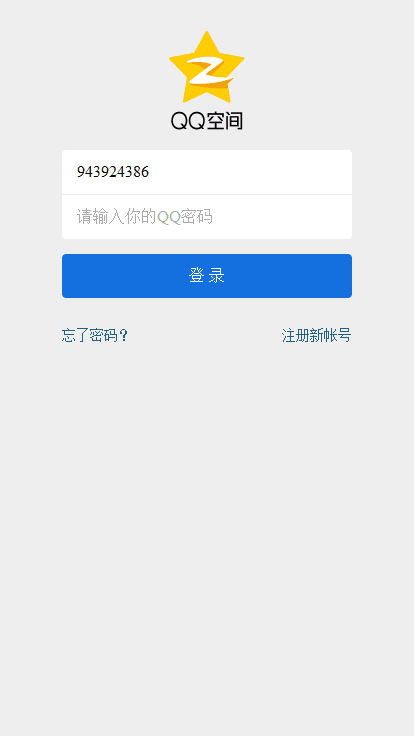

截图成功会在 project 下面生成screenshot.png


模仿用户输入 登录关键性代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
import time
from selenium.webdriver import ActionChains
    def loginQzone(self):
        u = self.driver.find_element_by_xpath('//*[@id="u"]')
        p = self.driver.find_element_by_xpath('//*[@id="p"]')
        go = self.driver.find_element_by_xpath('//*[@id="go"]')

        # 移动到账号框模仿键盘输入账号
        action = ActionChains(self.driver)
        action.move_to_element(u)
        action.click(u)
        # 模仿键盘输入账号
        action.send_keys(self.userName)

        # 移动到密码输入框
        action.move_to_element(p)
        action.click(p)
        # 模仿键盘输入密码
        action.send_keys(self.password)

        # 点击登录
        action.move_by_offset(go.location['x'], go.location['y'])
        action.click(go)

        # 执行登录
        action.perform()
        # 休息1秒保证能执行
        time.sleep(1)
        # 截图保存到当前项目下
        self.driver.save_screenshot('screenshotLoginQzone.png')


登录代码就写完了现在开始写个测试代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
if __name__ == '__main__':
        # 事先输入账号和密码
        userName = input("账号：")
        password = input("密码：")
        oldTime = time.time()
        browser = qzone_dlewares(userName=userName, password=password)
        initTime = time.time()
        # 打开浏览器并且截图
        browser.startQzoneRequest()
        requestTime = time.time()
        # 模仿用户登录
        browser.loginQzone()
        currentTime = time.time()

        print('开始时间 %f' % oldTime)
        print('结束时间 %f' % currentTime)
        print('初始化时间 %f' % (initTime - oldTime))
        print('加载页面时间 %f'%(requestTime - initTime))
        print('模仿操作时间 %f' %(currentTime - requestTime))
        print('总运行时间 %f' % (currentTime - oldTime))

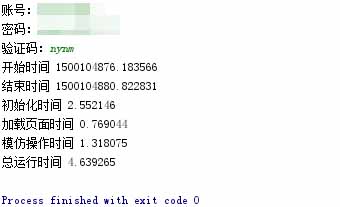

运行测试结果




运行几遍后发现每次都要登录一遍，然后腾讯验证码也出来了。。。
先把验证码这块给处理了

按照开始寻找图片的方法把验证码图片、验证码输入框、按钮找出来

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
from selenium.webdriver import ActionChains
def check_code(self):
    que_code = self.driver.find_element_by_xpath('//*[@id="cap_que_img"]')
    que_input = self.driver.find_element_by_xpath('//*[@id="cap_input"]')
    que_but = self.driver.find_element_by_xpath('//*[@id="verify_btn"]')

    #保存验证码
    self.save_verify_code(que_code)
    #输入验证码
    input_verify_code = input("验证码：")
    #模仿用户输入
    action = ActionChains(self.driver)
    action.move_to_element(que_input)
    action.click()
    action.send_keys(input())
    action.move_to_element(que_but)
    action.click()
    #执行
    action.perform()


保存验证码
1
2
3
4
5
import urllib
def save_verify_code(self,element):
    url = element.get_attribute('src')
    fileName = element.get_attribute('id') + '.jpg'
    urllib.request.urlretrieve(url, fileName)


运行测试，发现以下错误

Traceback (most recent call last):
  File “C:/Users/user/IdeaProjects/untitled/untitled/qzone.py”, line 108, in
     browser.check_code2()
  File “C:/Users/user/IdeaProjects/untitled/untitled/qzone.py”, line 67, in check_code2
     que_code = self.driver.find_element_by_xpath(‘//[@id=”cap_que_img”]’)
  File “D:\python\lib\site-packages\selenium\webdriver\remote\webdriver.py”, line 313, in find_element_by_xpath
     return self.find_element(by=By.XPATH, value=xpath)
  File “D:\python\lib\site-packages\selenium\webdriver\remote\webdriver.py”, line 791, in find_element
     ’value’: value})[‘value’]
  File “D:\python\lib\site-packages\selenium\webdriver\remote\webdriver.py”, line 256, in execute
     self.error_handler.check_response(response)
  File “D:\python\lib\site-packages\selenium\webdriver\remote\errorhandler.py”, line 194, in check_response
     raise exception_class(message, screen, stacktrace)
selenium.common.exceptions.NoSuchElementException: Message: {“errorMessage”:”Unable to find element with xpath ‘//[@id=\”cap_que_img\”]’”,”request”:{“headers”:{“Accept”:”application/json”,”Accept-Encoding”:”identity”,”Connection”:”close”,”Content-Length”:”108”,”Content-Type”:”application/json;charset=UTF-8”,”Host”:”127.0.0.1:53613”,”User-Agent”:”Python http auth”},”httpVersion”:”1.1”,”method”:”POST”,”post”:”{\”using\”: \”xpath\”, \”value\”: \”//*[@id=\\”cap_que_img\\”]\”, \”sessionId\”: \”737e6b90-6929-11e7-8958-3b746283f061\”}”,”url”:”/element”,”urlParsed”:{“anchor”:””,”query”:””,”file”:”element”,”directory”:”/“,”path”:”/element”,”relative”:”/element”,”port”:””,”host”:””,”password”:””,”user”:””,”userInfo”:””,”authority”:””,”protocol”:””,”source”:”/element”,”queryKey”:{},”chunks”:[“element”]},”urlOriginal”:”/session/737e6b90-6929-11e7-8958-3b746283f061/element”}}
Screenshot: available via screen

说没有找到这个节点，后来分析源码发现他是包在 iframe 中的 既然包在里面了那我们切换窗口好了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# 校验码
from selenium.common.exceptions import NoSuchElementException
def check_code(self):
    # 先切换到默认的窗口
    self.driver.switch_to.default_content()
    iframe = None
    try:
        # 验证码
        iframe = self.driver.find_element_by_xpath('//*[@id="new_vcode"]/iframe[2]')
    except NoSuchElementException:
        print('无需输入验证码')
    else:
        self.driver.switch_to.frame(iframe)
        self.verify_code()

手动输入验证码，暂时还不能自动输入验证码 并且也不能验证验证码是否错误或者切换

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# 验证码
def verify_code(self):
    que_code = self.driver.find_element_by_xpath('//*[@id="cap_que_img"]')
    que_input = self.driver.find_element_by_xpath('//*[@id="cap_input"]')
    que_but = self.driver.find_element_by_xpath('//*[@id="verify_btn"]')
    # 保存验证码
    self.save_verify_code(que_code)
    verify_path = que_code.get_attribute('id') + '.jpg'
    # 输入验证码
    if (self.isWindows()):
        os.startfile(verify_path)
    else:
        os.subprocess.call(["xdg-open", verify_path])
    input_verify_code = input("验证码：")
    # 模仿用户输入
    action = ActionChains(self.driver)
    action.move_to_element(que_input)
    action.click()
    action.send_keys(input_verify_code)
    action.move_to_element(que_but)
    action.click()
    # 执行
    action.perform()

完美运行登录成功


每次运行都需要手动登录太麻烦了 qzone 保存cookies 好像可以不需要手动登录了
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
# 保存登录 cookies
    def save_cookies(self):
        with open(self.hashCode(), 'wb') as f:
            obj = self.driver.get_cookies()
            pickle.dump(obj, f)
            f.close()
    # 读取并设置 cookies
    def load_cookies(self):
        fileName = self.hashCode()
        # 判断文件是否存在
        if self.file_exists(fileName):
            f = open(fileName, 'rb')
            obj = pickle.load(file=f)
            f.close()
            # 循环设置 cookie
            try:
                for cookie in obj:
                    self.driver.add_cookie(cookie)
            except Exception as e:
                print(e)
    # hasCode
    def hashCode(self):
        sha = sha1()
        sha.update(b'qzone_cookies')
        return sha.hexdigest()
        # 判断文件是否存在
    def file_exists(self, filename):
        try:
            with open(filename) as f:
                return True
        except IOError:
            return False

测试代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
if __name__ == '__main__':
    # 事先输入账号和密码
    userName = input("账号：")
    password = input("密码：")
    oldTime = time.time()
    browser = qzone_dlewares(userName=userName, password=password)
    # 加载cookies
    browser.load_cookies()
    initTime = time.time()
    # 打开浏览器并且截图
    browser.startQzoneRequest()
    requestTime = time.time()
    # 判断是否登录
    if (not browser.isLogin()):
        # 模仿用户登录
        browser.loginQzone()
        # 检查code
        browser.check_code()
    currentTime = time.time()

    # 解析动态
    browser.paresHtml()
    # 运行完成后再截图一次
    browser.driver.save_screenshot('screenshotLoginQzoneSuccess.png')
    # 保存cookies
    browser.save_cookies()
    print('开始时间 %f' % oldTime)
    print('结束时间 %f' % currentTime)
    print('初始化时间 %f' % (initTime - oldTime))
    print('加载页面时间 %f' % (requestTime - initTime))
    print('模仿操作时间 %f' % (currentTime - requestTime))
    print('总运行时间 %f' % (currentTime - oldTime))



qzone 登录自动登录完整代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
import json
import os
import pickle
import platform
import time
import urllib
from _sha1 import sha1
from selenium import webdriver
from selenium.common.exceptions import NoSuchElementException
from selenium.webdriver import DesiredCapabilities, ActionChains
class qzone_dlewares(object):
    # 浏览器请求头
    headers = {'Accept': '*/*',
               'Accept-Language': 'en-US,en;q=0.8',
               'Cache-Control': 'max-age=0',
               'User-Agent': 'Mozilla/5.0 (Linux; U; Android 2.3.6; zh-cn; GT-S5660 Build/GINGERBREAD) AppleWebKit/533.1 (KHTML, like Gecko) Version/4.0 Mobile Safari/533.1 MicroMessenger/4.5.255',
               'Connection': 'keep-alive', }
    # 初始化浏览器
    def __init__(self, userName='', password='', *args, **kwargs):
        self.userName = userName
        self.password = password
        desired_capabilities = DesiredCapabilities.PHANTOMJS.copy()
        for key, value in self.headers.items():
            desired_capabilities['phantomjs.page.customHeaders.{}'.format(key)] = value
        # 禁止加载图片
        desired_capabilities["phantomjs.page.settings.loadImages"] = False
        self.driver = webdriver.PhantomJS(desired_capabilities=desired_capabilities)
        # 设置屏幕大小
        self.driver.set_window_size(414, 736)
    # 开始请求并且截图
    def startQzoneRequest(self):
        # 开始请求qzone
        self.driver.get('https://mobile.qzone.qq.com')
        # 截图保存到当前项目下
        self.driver.save_screenshot('screenshot.png')
    # 判断是否登录了
    def isLogin(self):
        try:
            u = self.driver.find_element_by_xpath('//*[@id="u"]')
            p = self.driver.find_element_by_xpath('//*[@id="p"]')
            go = self.driver.find_element_by_xpath('//*[@id="go"]')
        except NoSuchElementException:
            return True
        return False
    def loginQzone(self):
        u = self.driver.find_element_by_xpath('//*[@id="u"]')
        p = self.driver.find_element_by_xpath('//*[@id="p"]')
        go = self.driver.find_element_by_xpath('//*[@id="go"]')
        # 清理账号和密码
        u.clear()
        p.click()
        # 移动到账号框模仿键盘输入账号
        action = ActionChains(self.driver)
        action.move_to_element(u)
        action.click(u)
        # 模仿键盘输入账号
        action.send_keys(self.userName)
        # 移动到密码输入框
        action.move_to_element(p)
        action.click(p)
        # 模仿键盘输入密码
        action.send_keys(self.password)
        # 点击登录
        action.move_by_offset(go.location['x'], go.location['y'])
        action.click(go)
        # 执行登录
        action.perform()
        # 休息1秒保证能执行
        time.sleep(1)
        # 截图保存到当前项目下
        self.driver.save_screenshot('screenshotLoginQzone.png')
    def save_verify_code(self, element):
        url = element.get_attribute('src')
        fileName = element.get_attribute('id') + '.jpg'
        urllib.request.urlretrieve(url, fileName)
    # 校验码
    def check_code(self):
        # 先切换到默认的窗口
        self.driver.switch_to.default_content()
        iframe = None
        try:
            # 验证码
            iframe = self.driver.find_element_by_xpath('//*[@id="new_vcode"]/iframe[2]')
        except NoSuchElementException:
            print('无需输入验证码')
        else:
            self.driver.switch_to.frame(iframe)
            self.verify_code()
    # 验证码
    def verify_code(self):
        que_code = self.driver.find_element_by_xpath('//*[@id="cap_que_img"]')
        que_input = self.driver.find_element_by_xpath('//*[@id="cap_input"]')
        que_but = self.driver.find_element_by_xpath('//*[@id="verify_btn"]')
        # 保存验证码
        self.save_verify_code(que_code)
        verify_path = que_code.get_attribute('id') + '.jpg'
        # 输入验证码
        if (self.isWindows()):
            os.startfile(verify_path)
        else:
            os.subprocess.call(["xdg-open", verify_path])
        input_verify_code = input("验证码：")
        # 模仿用户输入
        action = ActionChains(self.driver)
        action.move_to_element(que_input)
        action.click()
        action.send_keys(input_verify_code)
        action.move_to_element(que_but)
        action.click()
        # 执行
        action.perform()
    # 解析动态
    def paresHtml(self):
        pass
    # 是 windows 系统
    def isWindows(self):
        sysstr = platform.system()
        if (sysstr == "Windows"):
            return True
        return False
    # 保存登录 cookies
    def save_cookies(self):
        with open(self.hashCode(), 'wb') as f:
            obj = self.driver.get_cookies()
            pickle.dump(obj, f)
            f.close()
    # 读取并设置 cookies
    def load_cookies(self):
        fileName = self.hashCode()
        # 判断文件是否存在
        if self.file_exists(fileName):
            f = open(fileName, 'rb')
            obj = pickle.load(file=f)
            f.close()
            # 循环设置 cookie
            try:
                for cookie in obj:
                    self.driver.add_cookie(cookie)
            except Exception as e:
                print(e)
    # hasCode
    def hashCode(self):
        sha = sha1()
        sha.update(b'qzone_cookies')
        return sha.hexdigest()
        # 判断文件是否存在
    def file_exists(self, filename):
        try:
            with open(filename) as f:
                return True
        except IOError:
            return False
    # 退出浏览器
    def __del__(self):
        self.driver.quit()
if __name__ == '__main__':
    # 事先输入账号和密码
    userName = input("账号：")#
    password = input("密码：")#
    oldTime = time.time()
    browser = qzone_dlewares(userName=userName, password=password)
    # 加载cookies
    browser.load_cookies()
    initTime = time.time()
    # 打开浏览器并且截图
    browser.startQzoneRequest()
    requestTime = time.time()
    # 判断是否登录
    if (not browser.isLogin()):
        # 模仿用户登录
        browser.loginQzone()
        # 检查code
        browser.check_code()
    currentTime = time.time()

    # 解析动态
    browser.paresHtml()
    # 运行完成后再截图一次
    browser.driver.save_screenshot('screenshotLoginQzoneSuccess.png')
    # 保存cookies
    browser.save_cookies()
    print('开始时间 %f' % oldTime)
    print('结束时间 %f' % currentTime)
    print('初始化时间 %f' % (initTime - oldTime))
    print('加载页面时间 %f' % (requestTime - initTime))
    print('模仿操作时间 %f' % (currentTime - requestTime))
    print('总运行时间 %f' % (currentTime - oldTime))

总结

1、QQ空间登录其实可用使用js来模仿用户操作直接输入代码量也很少
2、然后这边也有一个写入cookies 的bug因为作用域不对会报错

我只是一只小菜鸟，如果你看到代码有错误的地方请提出来

扫一扫，分享到微信

微信分享二维码

tag:

    缺失模块。
    1、请确保node版本大于6.2
    2、在博客根目录（注意不是yilia根目录）执行以下命令：
    npm i hexo-generator-json-content --save

    3、在根目录_config.yml里添加配置：

      jsonContent:
    meta: false
    pages: false
    posts:
      title: true
      date: true
      path: true
      text: false
      raw: false
      content: false
      slug: false
      updated: false
      comments: false
      link: false
      permalink: false
      excerpt: false
      categories: false
      tags: true

联系QQ:943924386<br/>Email:deadcalm@yesc.me<br>
